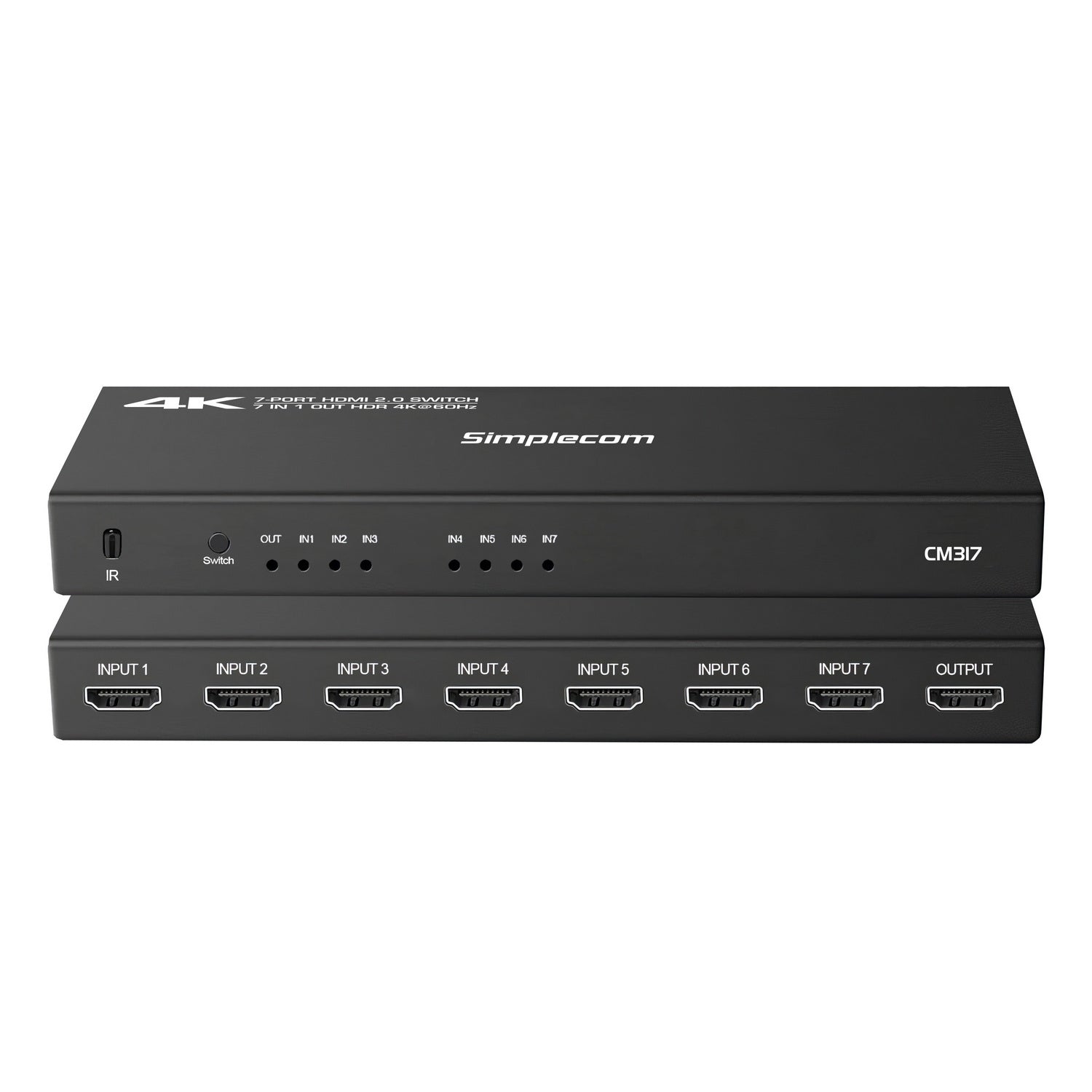

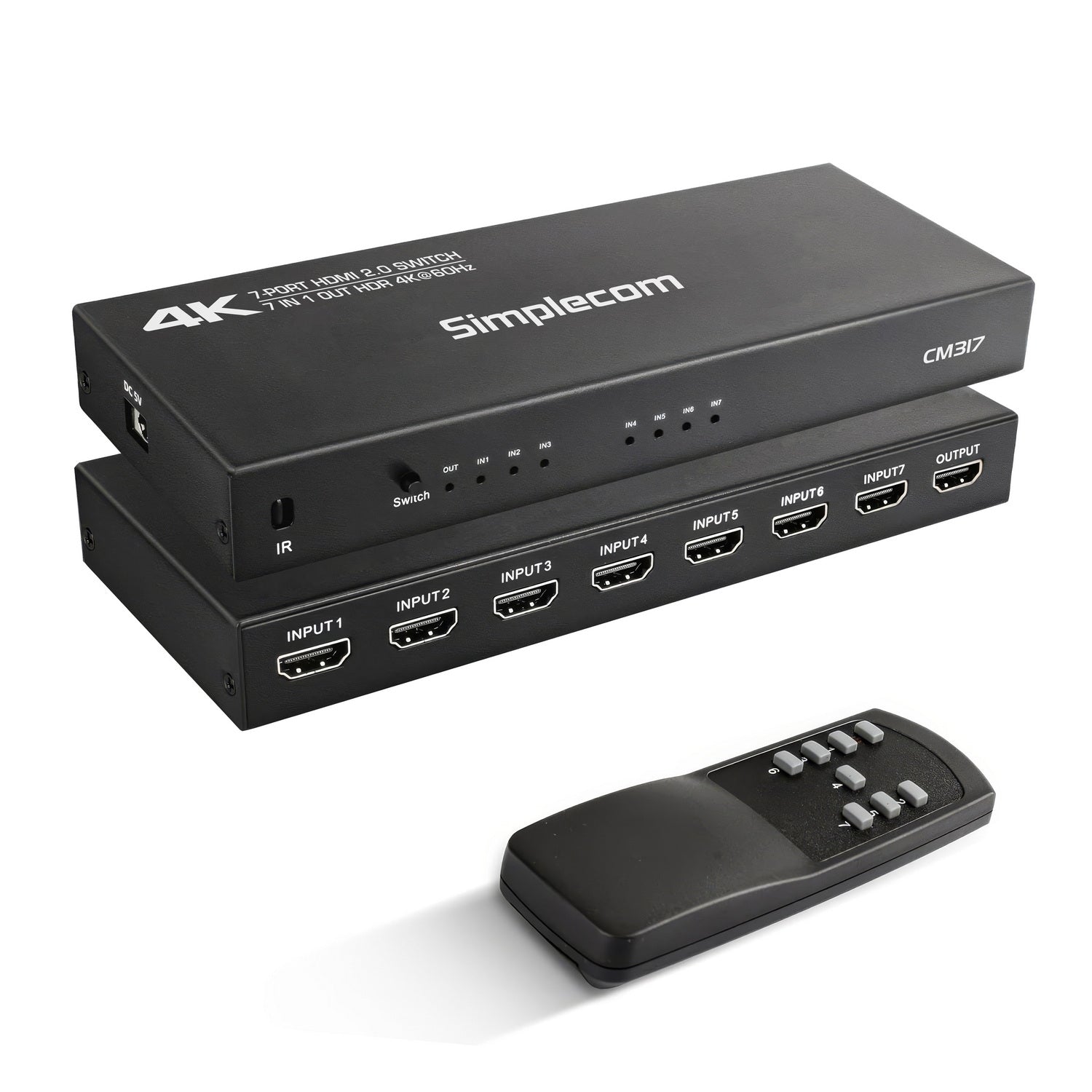

Simplecom CM317 7-Port HDMI 2.0 Switch with Remote 7 IN 1 OUT Splitter HDCP 2.2 4K@60Hz

Simplecom CM317 7-Port HDMI 2.0 Switch with Remote 7 IN 1 OUT Splitter HDCP 2.2 4K@60Hz

Simplify your HDMI devices setup with this 7-Port HDMI 2.0 switch, eliminating the hassle of manually changing cables when there aren't enough HDMI ports on your display. It's designed to connect up to seven HDMI source devices to a single HDMI port on your TV, monitor, or projector. Perfect for gaming consoles, streaming devices, Blu-ray players, and more.

Fully compliant with HDMI 2.0 and HDCP 2.2, this switch ensures high-quality video and audio transmission with backward compatibility for older versions. It supports 4K@60Hz resolution and 18Gbps bandwidth, delivering crisp visuals and smooth performance.

The switch also features Auto Switching, which automatically detects and selects the active input. LED indicators clearly display the active source. Control your devices effortlessly using the manual button or the included remote control for added convenience. Whether for gaming, streaming, or presentations, this HDMI switch is the perfect solution for managing multiple HDMI devices with ease.

Features

• Compliant with HDMI 2.0 and backward compatible with previous HDMI versions

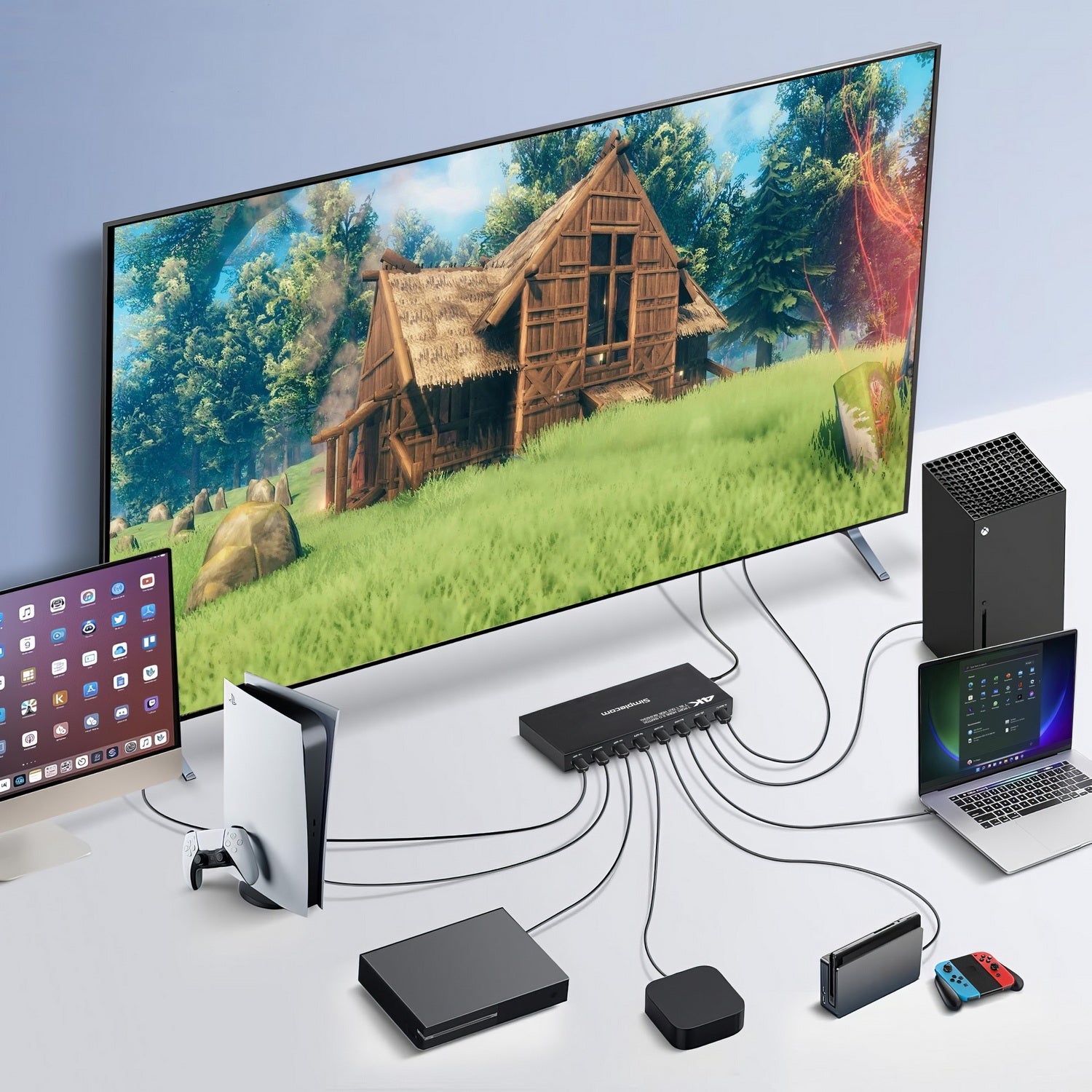

• Connect up to 7 HDMI source devices to a single HDMI port on your display

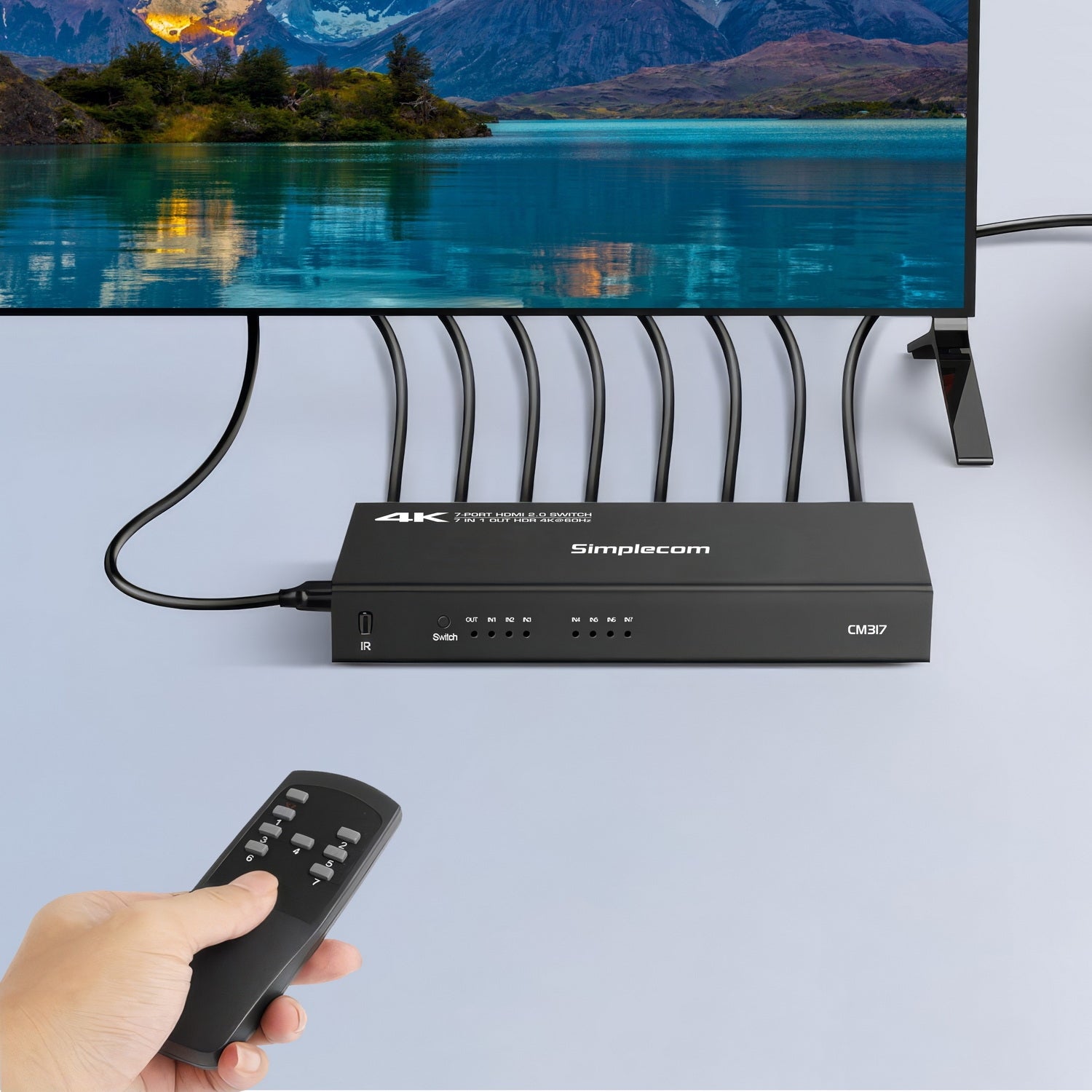

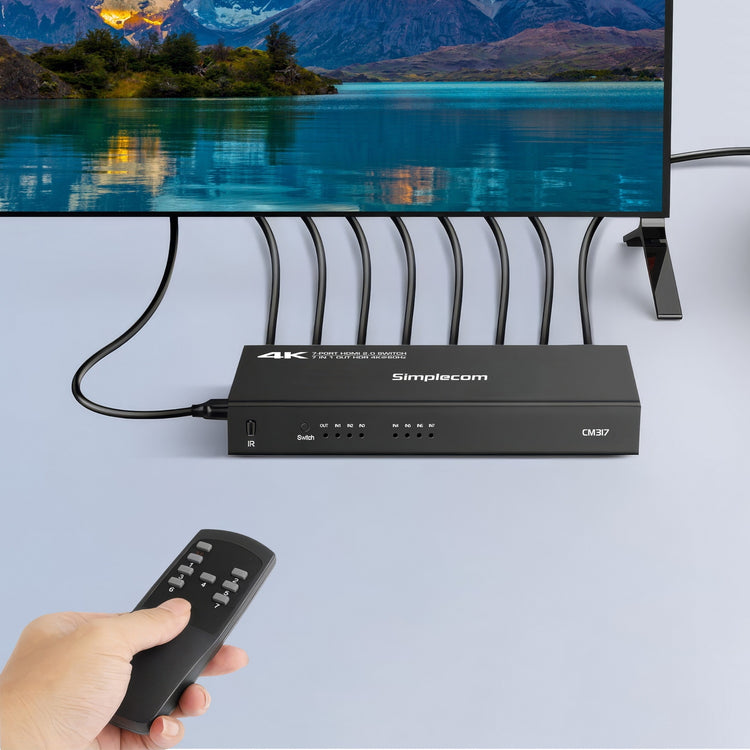

• Easy to use with manual button or included remote control
• HDCP 2.2 compliant, backward compatible with previous HDCP versions
• Supports video resolutions up to 4K@60Hz for stunning clarity
• Supports video bandwidth up to 18Gbps
• Features Auto Switching to the active input source for convenience

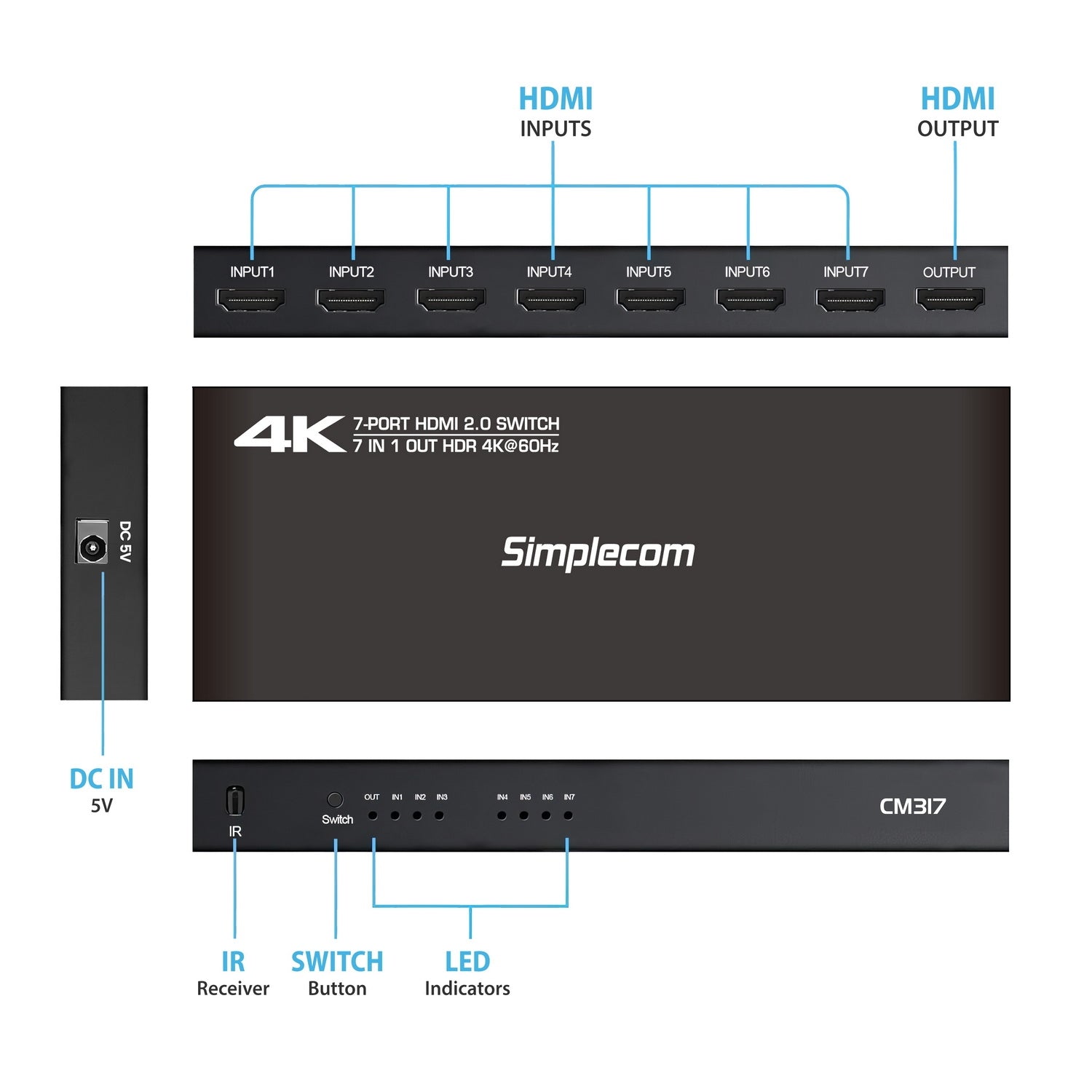

• LED indicators display the active input port status
• Plug and Play, powered via USB for easy setup

Specifications

• Model: CM317
• HDMI version: HDMI 2.0b
• HDCP version: HDCP 2.2
• HDMI Input: 7x HDMI Female
• HDMI Output: 1x HDMI Male
• HDMI Max Bandwidth: 18Gbps
• Resolution Support: 4K, 1440p, 1080p, 1080i, 720p, 720i, 576p, 576i, 480p
• Max Refresh Rate: 4K@60Hz, 1080p@120Hz
• Support Video Colour: 12bit/14bit/16bit/36bit deep colour, RGB 8:8:8
• HDR support: HDR 10, Dolby Vision
• Support Audio Format: DTS, DTS-HD, Dolby-TrueHD, Dolby AC-3, PCM, LPCM
• Power Input: DC 5V
• Operating Temperature: 0C to 70C
• Dimension (L x W x H): 19.5 x 7 x 2.3 cm
• Weight: 291g

Package Contents

• 1x 7-Port HDMI Switch
• 1x Remote Control
• 1x 5V1A Power Adapter
• 1x USB Power cable

Important Note

• This device is 7 IN 1 OUT one way only, and cannot be used in reverse way
• Certain HDMI devices, such as Apple TV, keep their HDMI port active even when in sleep mode. As a result, auto-switching may not function correctly with these devices. In this case, you can still switch inputs manually.
